Maxigator®

Lateral Move
Advanced lateral move irrigation for maximum field coverage. A high-efficiency lateral move system designed to irrigate square, rectangular, and irregularly shaped fields with precision and adaptability.
Slider Image
Configurations

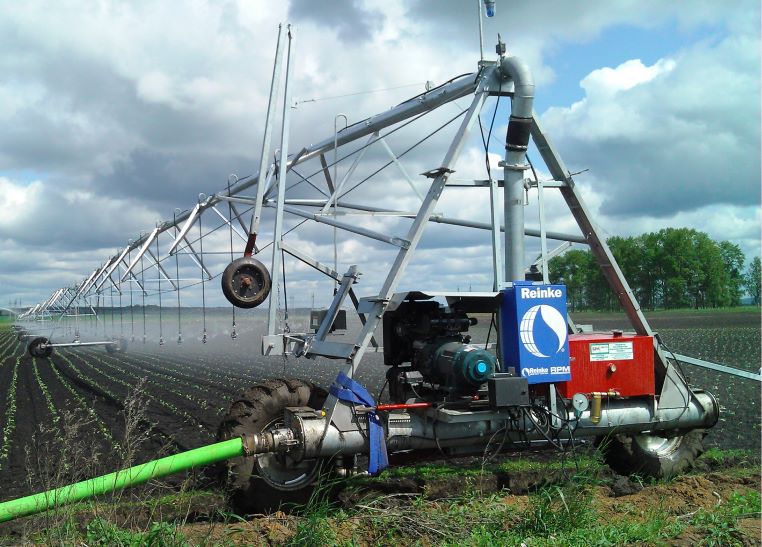

​2-WHEEL POWER TOWER/HOSE PULL

Our 2-wheeled option offers great versatility with features such as forward and reverse tow options, double inlet hose systems, internal check valves and quick coupler connections on both ends. A double-end feed option is also available.
Configurations

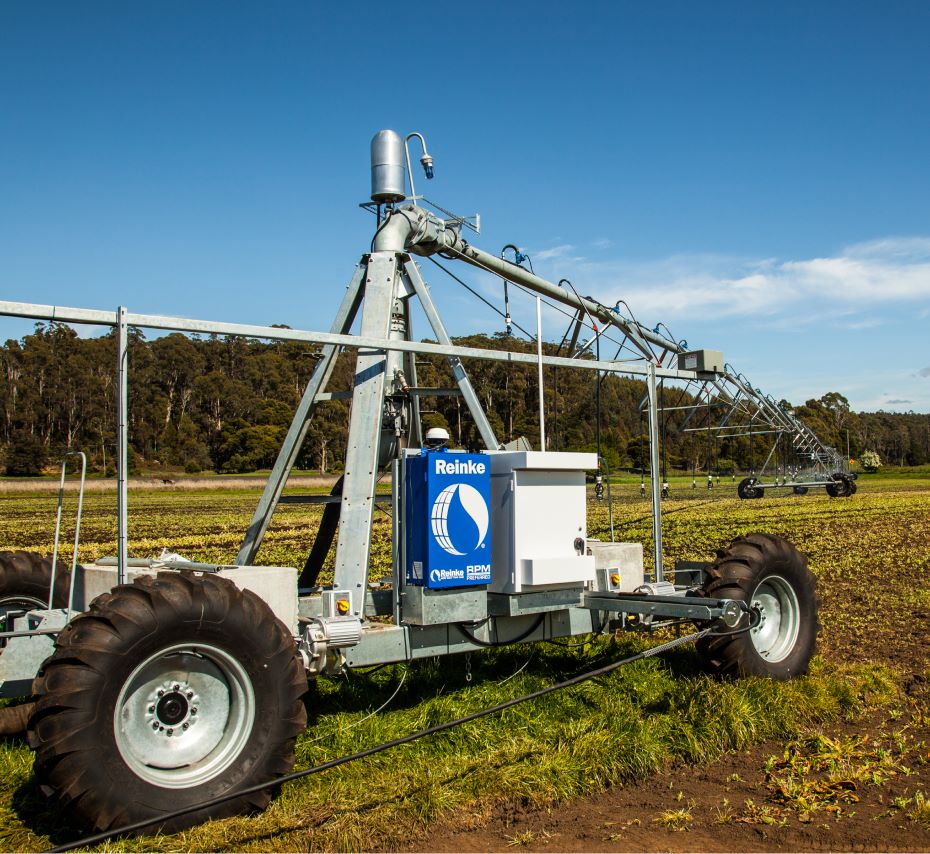

4-WHEEL POWER TOWER/HOSE PULL

Our best option for larger fields. Floating axles keep all four tires on the ground, allowing this unit to pull large hoses (up to 8-inches) as required by high flow systems. With either power cord pull or an onboard power supply, this is your right hand man.
Configurations

PIVOTING LATERAL MOVE

With the ability to irrigate two sides of a rectangular field, our Pivoting Lateral Move is the most versatile system we offer. When the system is finished with one side of the field, it pivots easily to irrigate the other side. It uses only one cart path, no towing is necessary and you're able to irrigate twice as many acres with just one system.
Configurations

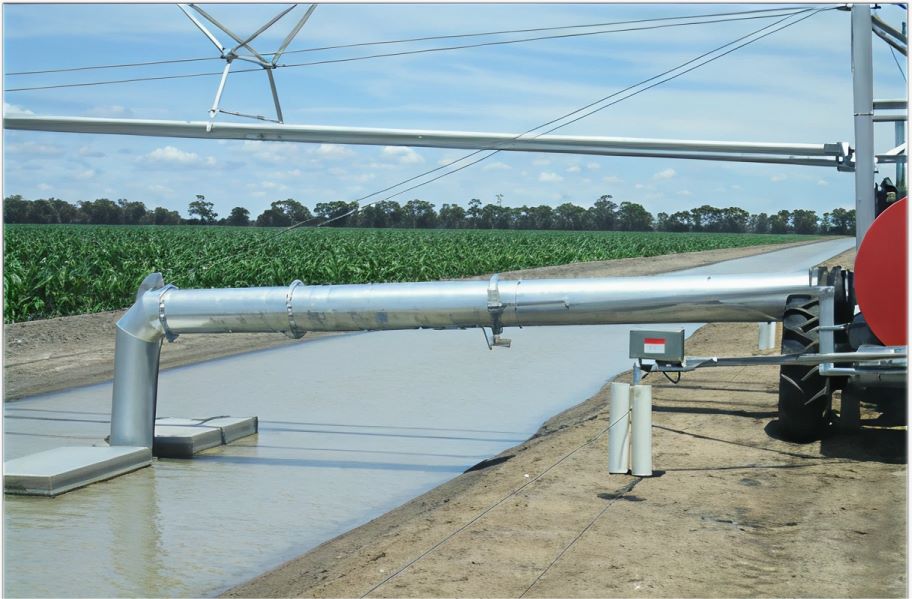

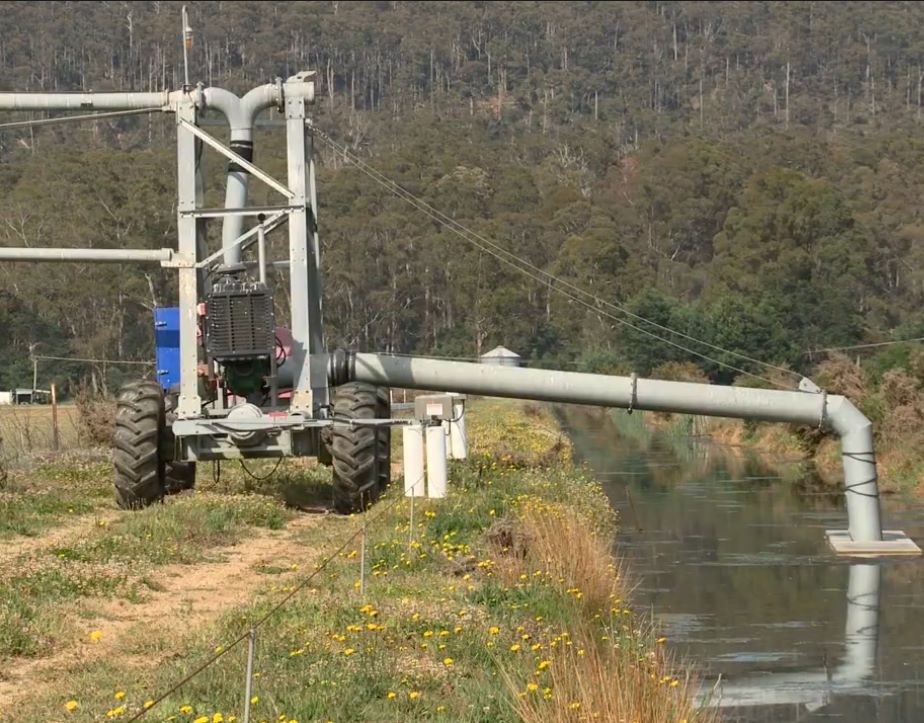

CANAL FEED

The Reinke Canal Feed system carries its own pumping equipment and generator within its compact and clean design. You'll also receive annual energy savings from its ability to reduce system pressure loss by using the center-feed option in larger fields.
DISCOVER BEYOND the POSSIBLE

discover e3

Flexible Navigation Options

GUIDANCE SYSTEM OPTIONS


Navigator GPS

Provides extreme accuracy in timing and application.

​Cable

Assures accurate lateral movement and uniform water distribution over the entire field.

Furrow

Uses specially designed wheels that track a V-furrow parallel to the travel path.

​Fence

Creates no additional obstacles in the field and requires minimum maintenance.
Real Results. Real Growers.
“When I changed to a Reinke center pivot, the amount of water applied to the crops is controlled better and I no longer worry about the crops being drowned out. Using a center pivot is easy to use, and not as la­bor-intensive as the flood irrigation process.”
James Silva
Real Results. Real Growers.
“Seeing the data from the physical sensor in the ground is the best benefit. This almost real-time data helps me plan my next irrigation, and see the effects of rainfall as well.”
Bill Mize
Real Results. Real Growers.
“With the Reinke system being lighter, it doesn’t get stuck in the clay ground like the other heavier brands. I can save money and irrigate more sustainably.”
Jac Johan van der Westhuizen
product breakdown

Specifications

PERFORMANCE FEATURES
Cart Options
2WD, 4WD, CF200, Canal Feed, Pivoting Lateral
Max System Length
2WD Hose Feed 3,000’
4WD Hose Feed 3,000'
CF200 Canal Feed 1,400'
Canal Feed 3,000'
Pivoting Lateral End Feed 1,700'
Pivoting Lateral Canal Feed 1,700'
Span Diameters
6”, 6 5/8”, 8 5/8”, 10”
Span Models
Electrogator® II, Electrogator® 3, and Alumigator®
4WD Hose Size
Up to 8"
2WD Hose Size
Up to 6"
Reverse-on-hose
Up to 6" Hard Hose
Percent Direction of Travel Slope
5%
Percent Side Slope
4%
Guidance Options
Cable, Fence, Furrow, and GPS
LONGEVITY AND RELIABILITY
Optimized Field Movement
The Maxigator™ ridgid span enables optimal ridgidity for greater structural integrity.
Reliable Drivetrain
Built for efficient and long-lasting operation in demanding conditions.
Industry-Leading Warranty
Ensuring long-term system performance and durability.
SUMMARY OF NEW SYSTEM LIMITED WARRANTY

WARRANTY

Reinke Irrigation Systems have a standard two (2) year limited warranty and extended warranties on certain primary components as listed below:

Water Pipe

Reinke 10/16
Or 16,000 hours of operation, whichever shall occur first.
25 Years
Span Joint Water Hose (Boots)
10 Years
Structural failure due to corrosion
  • Galvanized Steel
  • CN+
  • Aluminum
  • Stainless Steel
  • Poly-Lined
20 Years

Drive Train

Reinke 10/16
Or 16,000 hours of operation, whichever shall occur first.
10 Years
Standard Duty
Or 10,000 hours of operation, whichever shall occur first.
10 Years
Moderate Duty
Or 6,000 hours of operation, whichever shall occur first.
5 Years

Structural Components

Manufactured directly by Reinke Manufacturing Co., Inc.
5 Years

Precision Technology

Reinke 10/16
5 Years
RPM Advanced Plus™ Panel
5 Years
RPM Touch Screen Panel
5 Years
RPM Connect™ Panel
5 Years
Navigator™ EOS GPS
2 Years
RC3™
3 Years

contact Reinke for questions
