alumigator®

Center Pivots
The industry’s only all-aluminum center pivot system. Engineered for lightweight durability, reducing wheel ruts and optimizing irrigation for delicate crops.
Slider Image
Product Information

40" LEPA Sprinkler Outlet Spacing

More water where it matters. The 40-inch Low Energy Precision Application (LEPA) outlet spacing is designed to minimize evaporation and drift, ensuring more water reaches the soil. With closer spacing, crops receive uniform moisture for healthier growth and improved efficiency.
Product Information

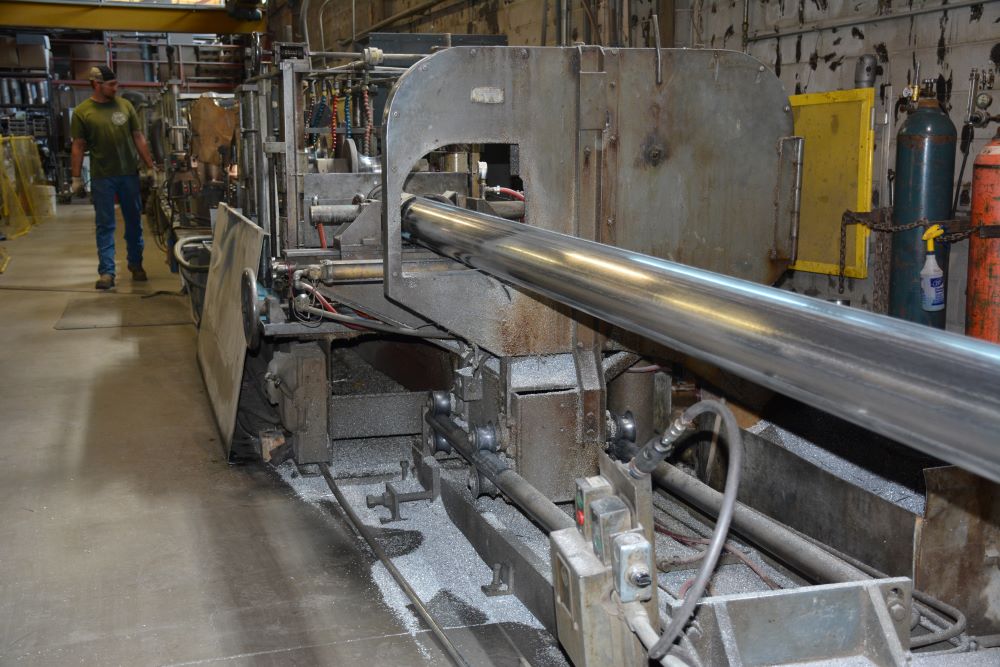

6” Aluminum Pipe

Strength without the weight. The 6-inch aluminum pipe offers excellent corrosion resistance while keeping your system lightweight for easier handling and transport. Its durable construction ensures long-term performance, making it a smart choice for efficient water delivery in the field.
Product Information

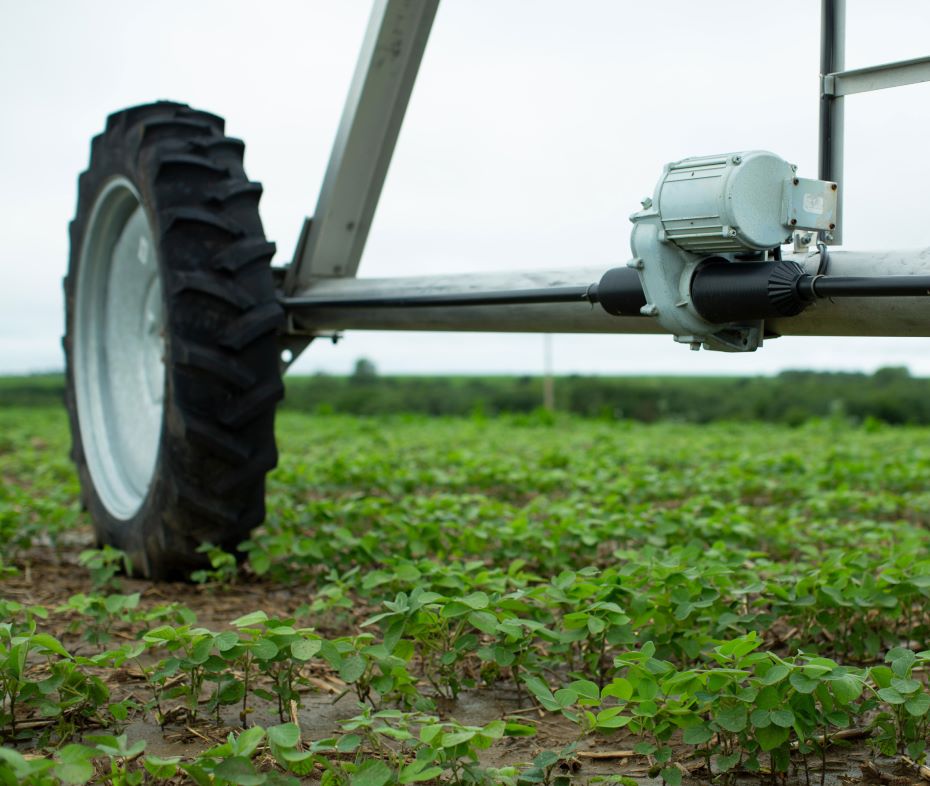

14.9" x 24" Turf Tire

Grip that’s gentle on your field. The 14.9" x 24" turf tire provides a wide footprint to reduce soil compaction while maintaining excellent traction. Designed for durability and smooth movement, it helps keep your system rolling without disturbing valuable crops.
Product Information

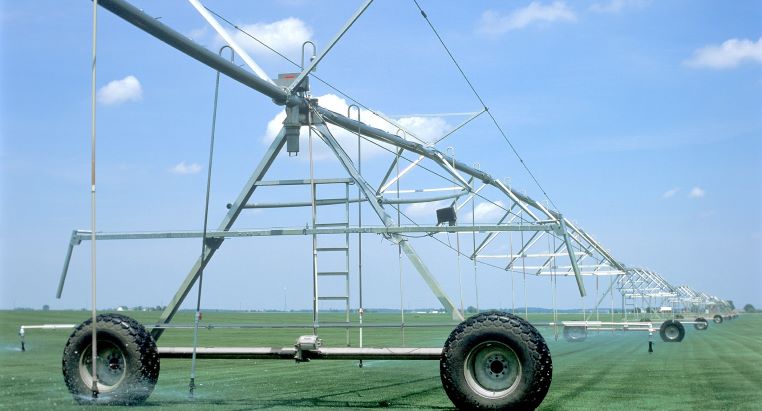

16' Tower Base

A strong stance for lasting performance. The 16-foot tower base offers a stable, wide foundation, improving system balance and durability. Designed to handle uneven terrain, it keeps your irrigation running smoothly while standing up to the demands of the field.
Real Results. Real Growers.
“When I changed to a Reinke center pivot, the amount of water applied to the crops is controlled better and I no longer worry about the crops being drowned out. Using a center pivot is easy to use, and not as la­bor-intensive as the flood irrigation process.”
James Silva
Real Results. Real Growers.
“Seeing the data from the physical sensor in the ground is the best benefit. This almost real-time data helps me plan my next irrigation, and see the effects of rainfall as well.”
Bill Mize
Real Results. Real Growers.
“With the Reinke system being lighter, it doesn’t get stuck in the clay ground like the other heavier brands. I can save money and irrigate more sustainably.”
Jac Johan van der Westhuizen
product breakdown

Specifications

PERFORMANCE FEATURES
Pivot Points
8” Maintenance-Free Bearing
Max System Length
1,560’
Pipe Diameters
6”, 8”
Pipe Materials
Aluminum
Pipe Coatings
ReinCoat®
Span Lengths1
118’, 137’, 140’, 156’, 160’
Span Connection
Hook & Receiver
Span Outlet Spacing
40”
Span Percent Slope2
Up to 18%
Boom Lengths
13’, 23’, 32’, 42’, 51’
Wheel Gears
Moderate duty, 740 Series, Reinke 10/16 WheelGear
Tires
11” x 22.5”, 11.2” x 24”, 320/85R24, 14.9” x 24”,  16.9” x 24”, 11.2” x 38”, 320/85R38, 13.6” x 38”, 380/80R38
Drive Train
-
Tower Heights
Standard
Truss System
Heritage™ Trussing System
Truss Rods
3/4”
Towing3
Four-Wheel Pivot Mover, Skid Tow, Two-Wheel Quick Tow, Engine Drive4
ESAC™ Swing Arm Corner Series
-
Wrap Span
-
Drop Span
-
LONGEVITY AND RELIABILITY
Optimized Stress Transfer
The ReinLock™ Trussing System ensures greater structural integrity.
Reliable Drivetrain
Built for efficient and long-lasting operation in demanding conditions.
Industry-Leading Warranty
Ensuring long-term system performance and durability.
PERFORMANCE FEATURES
Available Tower Heights
Supergator®: 20 ft (6.1m)
Sugargator®: 14 ft (4.3m)
Standard: 9 ft (2.7m)
Low Profile: 5 ft (1.5m)
1 Span lengths vary based on pipe diameter
2
Slope limitations vary based on span length and span performance kits
3
Maximum machine length cannot exceed 1,320’ with a towing package
4
Available in a single span configuration only
SUMMARY OF NEW SYSTEM LIMITED WARRANTY

WARRANTY

Reinke Irrigation Systems have a standard two (2) year limited warranty and extended warranties on certain primary components as listed below:

Water Pipe

Reinke 10/16
Or 16,000 hours of operation, whichever shall occur first.
25 Years
Span Joint Water Hose (Boots)
10 Years
Structural failure due to corrosion
  • Galvanized Steel
  • CN+
  • Aluminum
  • Stainless Steel
  • Poly-Lined
20 Years

Drive Train

Reinke 10/16
Or 16,000 hours of operation, whichever shall occur first.
10 Years
Standard Duty
Or 10,000 hours of operation, whichever shall occur first.
10 Years
Moderate Duty
Or 6,000 hours of operation, whichever shall occur first.
5 Years

Structural Components

Manufactured directly by Reinke Manufacturing Co., Inc.
5 Years

Precision Technology

Reinke 10/16
5 Years
RPM Advanced Plus™ Panel
5 Years
RPM Touch Screen Panel
5 Years
RPM Connect™ Panel
5 Years
Navigator™ EOS GPS
2 Years
RC3™
3 Years

contact Reinke for questions
