Center Pivots
Flexible irrigation for multiple fields. Easily move your center pivot between fields for cost-effective, multi-field irrigation without sacrificing durability or performance.
Find a dealer
See Specifications
Slider Image
Product Information

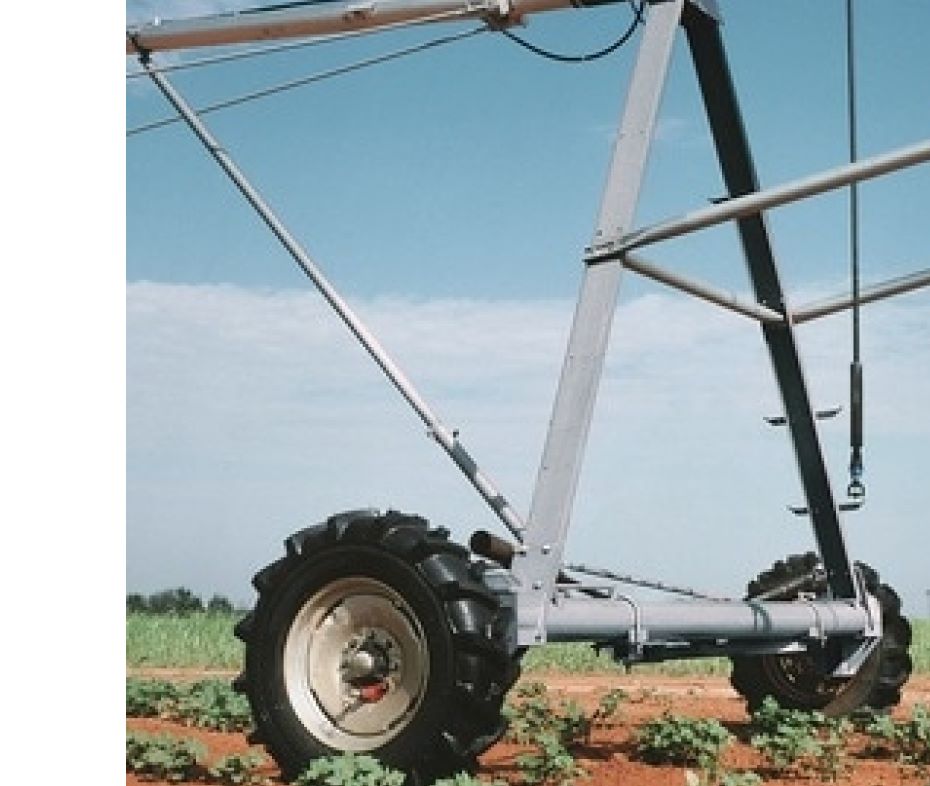

FOUR-WHEEL PIVOT MOVER

The Four-Wheel Pivot Mover is unique in its ability to quickly adapt to movement in multiple directions. Wheel hubs are mounted on base beams and can be quickly swiveled 90 degrees. Plus, the quick hitch can be moved to any side for easy towing.
Product Information

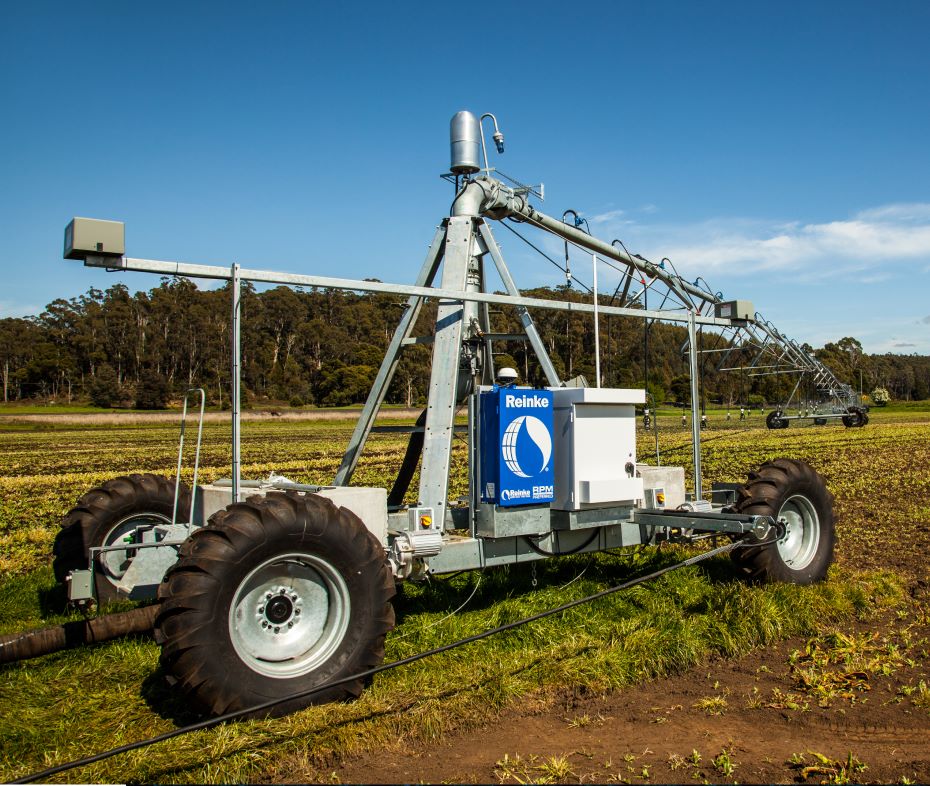

TWO-WHEEL KWIK TOW

The Two-Wheel Kwik Tow sets the standard for short field towable pivot systems. Without a doubt, the reliability and convenience of the Kwik Tow is unmatched in the industry. It's available with a hydraulic lift option as well as a motorized Kwik Tow Kit that allows you to move the system laterally for short distances.
Product Information

REVERSE TOW STEERING LINKAGE

​When the system needs to be towed from the end-boom side, the Reverse Tow is the best fit. It's only available from Reinke.
DISCOVER BEYOND the POSSIBLE

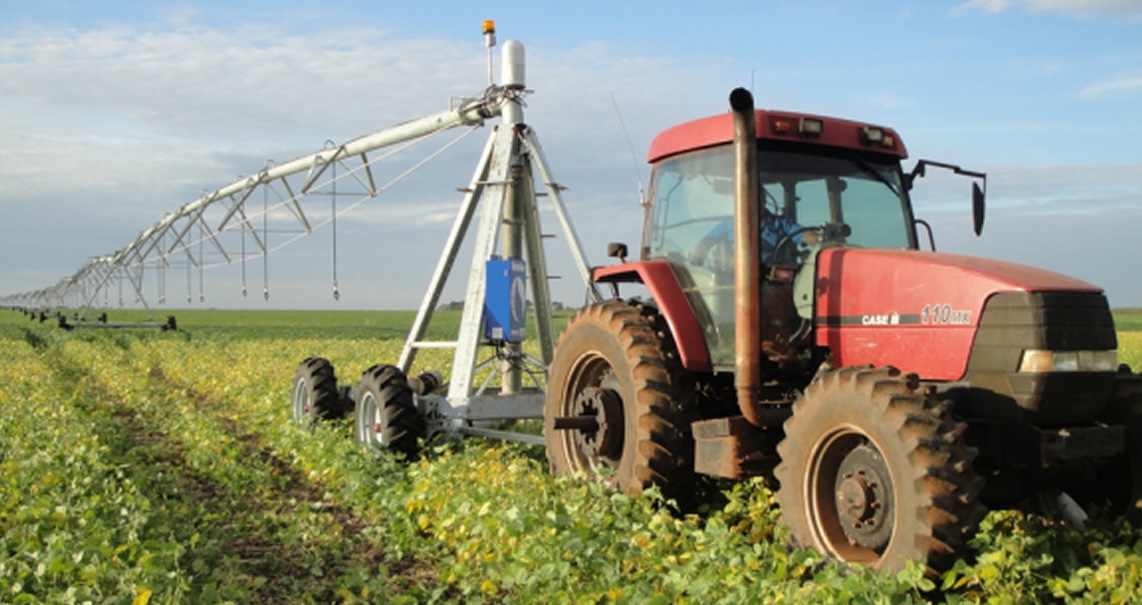

Towable system in action

Learn More

Resources

Guides and insights designed to help you maximize efficiency, improve productivity, and make the most of your irrigation systems.
view all resources
Post Image
Reinke Pipe Options
Pipe is the most fundamental component of an irrigation system.
Post Image
Flex Joint Hook & Receiver
The flex joint hook and receiver is another Reinke engineering innovation.
Real Results. Real Growers.
“When I changed to a Reinke center pivot, the amount of water applied to the crops is controlled better and I no longer worry about the crops being drowned out. Using a center pivot is easy to use, and not as la­bor-intensive as the flood irrigation process.”
–James Silva
Real Results. Real Growers.
“Seeing the data from the physical sensor in the ground is the best benefit. This almost real-time data helps me plan my next irrigation, and see the effects of rainfall as well.”
–Bill Mize
Real Results. Real Growers.
“With the Reinke system being lighter, it doesn’t get stuck in the clay ground like the other heavier brands. I can save money and irrigate more sustainably.”
–Jac Johan van der Westhuizen
product breakdown

Specifications

PERFORMANCE FEATURES
Pivot Points
6”, 8” Maintenance-free Bearing™, 10”
Max System Length
2,900’
Pipe Diameters
6”, 6 5/8”, 8 5/8”, 10”
Pipe Materials
High-Strength Steel, CN+
Pipe Coatings
ReinCoat®
Span Connection
Hook & Receiver
Span Outlet Spacing
30", 60"
Span Percent Slope
Up to 23%
Boom Lengths
10’, 20’, 30’, 40’, 50’, 60’, 70’, 80', 90’, 100', 110’
Truss System
ReinLock™  Trussing System
LONGEVITY AND RELIABILITY
Optimized Stress Transfer
The ReinLock™ Trussing System ensures greater structural integrity.
Reliable Drivetrain
Built for efficient and long-lasting operation in demanding conditions.
Industry-Leading Warranty
Ensuring long-term system performance and durability.
PERFORMANCE FEATURES
Available Tower Heights
Supergator®: 20 ft (6.1m)
Sugargator®: 14 ft (4.3m)
Standard: 9 ft (2.7m)
Low Profile: 5 ft (1.5m)
view all specs
SUMMARY OF NEW SYSTEM LIMITED WARRANTY

WARRANTY

Reinke Irrigation Systems have a standard two (2) year limited warranty and extended warranties on certain primary components as listed below:
read full warranty

Water Pipe

Reinke 10/16
Or 16,000 hours of operation, whichever shall occur first.
25 Years
Span Joint Water Hose (Boots)
10 Years
Structural failure due to corrosion
  • Galvanized Steel
  • CN+
  • Aluminum
  • Stainless Steel
  • Poly-Lined
20 Years

Drive Train

Reinke 10/16
Or 16,000 hours of operation, whichever shall occur first.
10 Years
Standard Duty
Or 10,000 hours of operation, whichever shall occur first.
10 Years
Moderate Duty
Or 6,000 hours of operation, whichever shall occur first.
5 Years

Structural Components

Manufactured directly by Reinke Manufacturing Co., Inc.
5 Years

Precision Technology

Reinke 10/16
5 Years
RPM Advanced Plus™ Panel
5 Years
RPM Touch Screen Panel
5 Years
RPM Connect™ Panel
5 Years
Navigator™ EOS GPS
2 Years
RC3™
3 Years
