Electrogator® 3

Center Pivots

Forged for unshakable stability and rock-solid reliability, the E3™ sets the new standard for irrigation. This workhorse is built to endure, designed to adapt, and ready to deliver water over even the toughest acres.

Find a dealer

See Specifications

Product Information

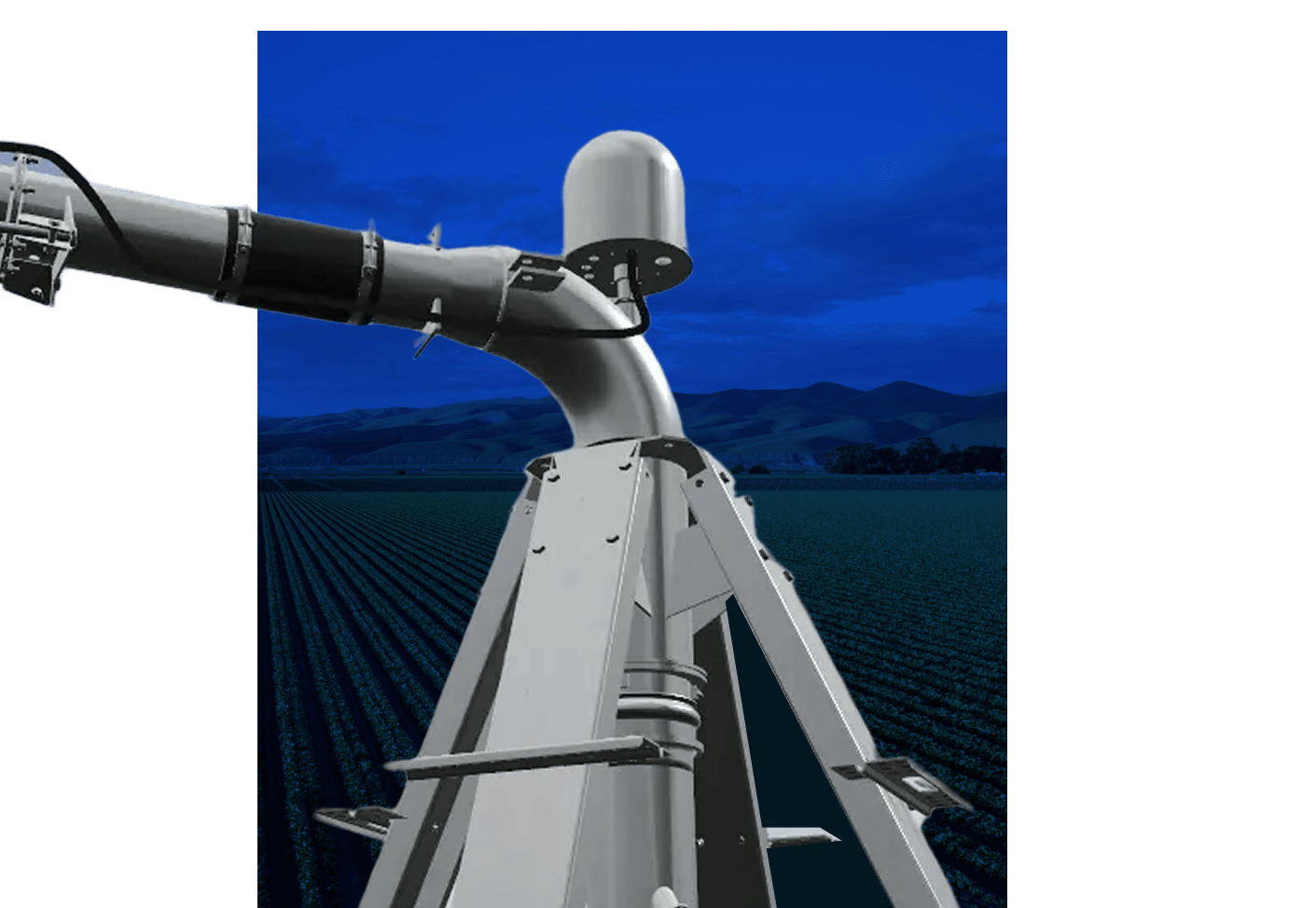

Pivot Center

The E3’s open-frame design is easily retrofitted to all irrigation systems. Its rugged foundation uses the C-channel tower leg design for a durable foundation, so it can work harder and go longer.

Our patented maintenance-free bearing is built to stand strong under tremendous rotational forces, bringing superior holding strength and long-lasting performance while eliminating the use of grease.

Product Information

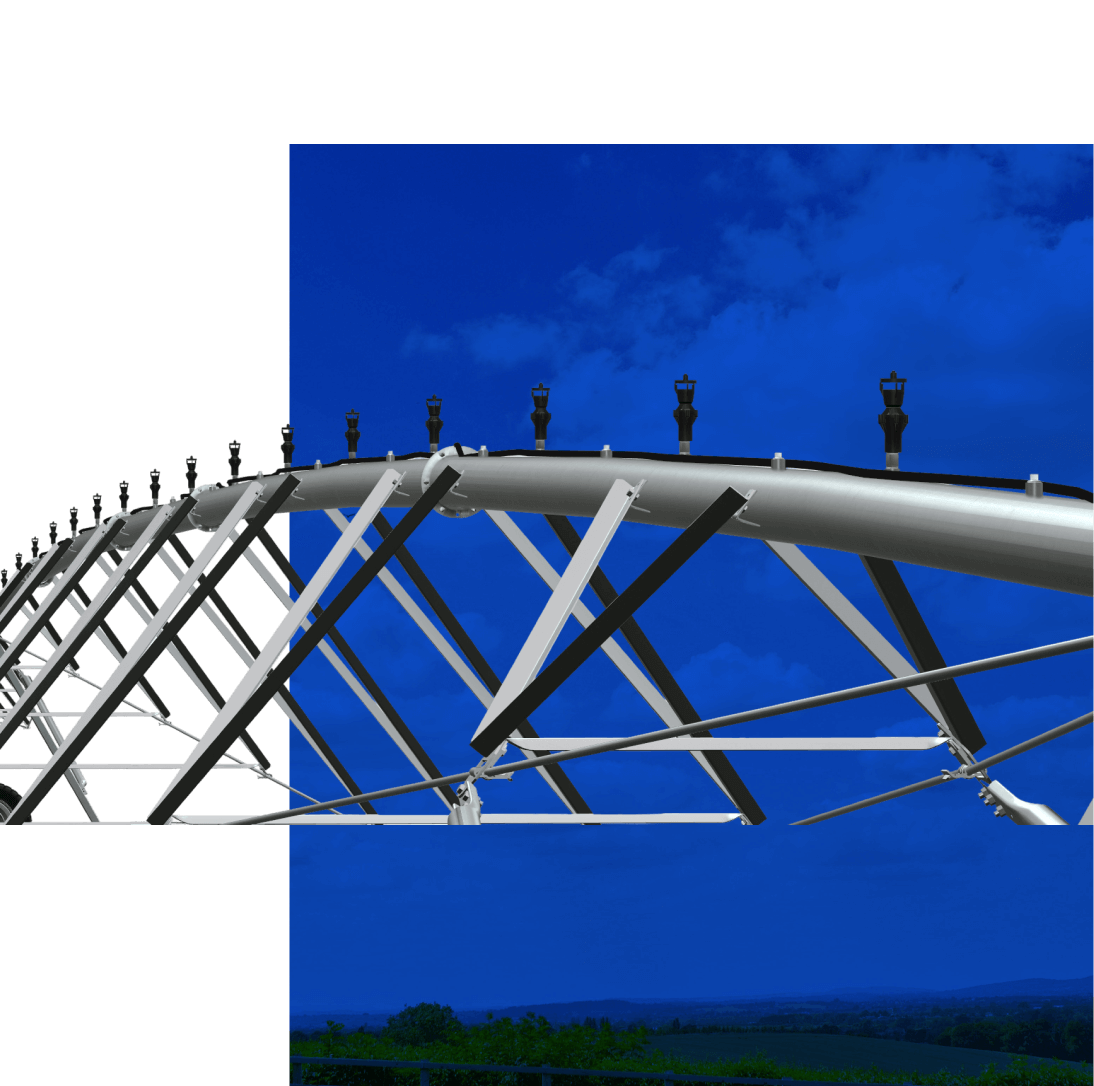

Spans

Uniform coupler spacing throughout the entire length of the system is the hallmark of the E3 system. Get even coverage and improved tracking performance, no matter what combinations you use for your system. Available in 30” or 60” intervals.

The industry-leading patented V-ring seal keeps seals in the dark, hidden from damaging UV rays and eliminating water flow reduction.

ReinLock™ trussing system uses an anti-racking 5-point hub with a single bolt, maintaining a consistent span crown with optimal retention and stress transfer.

Product Information

End of system

Our end booms are built with an industry-exclusive inverted truss design to give you more flexibility in coverage, while bolted rod ends let you customize clearance to fit your field’s needs.
‍
The patented Electronic Swing Arm Corner (ESAC™) irrigates your field all the way to the corners. With lengths of 290’ and 330’, they’re the best option for effectively irrigating your entire field while avoiding over or under watering corners.

Product Information

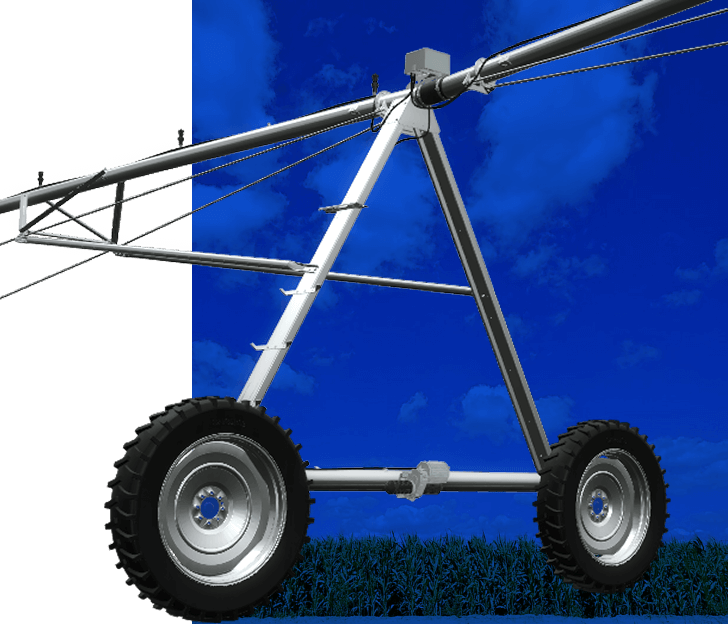

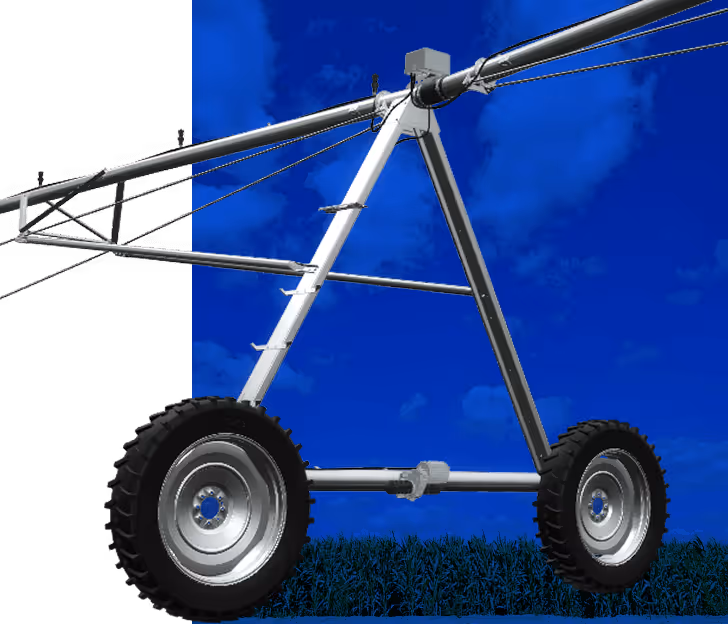

Towers

DISCOVER BEYOND the POSSIBLE

discover e3

Ready to Get Started?

Here’s What to Expect

Find A Dealer

01. Design your system

Our network of certified local dealers will help you design exactly what you need for your field. Using maps, we’ll draw the largest circle possible to cover the biggest area we can. Need more coverage? Add an end gun or ESAC™. An effective pivot design can ensure up to 98.2% of your field is irrigated and ready to bring big yields your way.

02. install

After we build your system at our plant, your dealer will get you up and running in no time. They’ll deliver and install your system. And if anything comes up while you’re using it, they’ll be there for you, too. Just give ‘em a call.

03. maintain

Maintaining your new Reinke pivot system is as easy as pie. There’s no need to grease bearings or check seals, thanks to our maintenance-free bearings and hidden V-ring seals. Normal maintenance includes winterizing your system in cold climates, inspecting mechanical components for wear and tear, and checking that tires are inflated and properly aligned. Not sure what to do? Let our dealers give you a hand. That’s exactly what they’re there for.

Learn More

Resources

Guides and insights designed to help you maximize efficiency, improve productivity, and make the most of your irrigation systems.

view all resources

Flex Joint Hook & Receiver

The flex joint hook and receiver is another Reinke engineering innovation.

Maintenance-Free Bearing

Engineered for durability and reliability, eliminating the need for routine upkeep while ensuring optimal performance in demanding irrigation applications.

Real Results. Real Growers.

“When I changed to a Reinke center pivot, the amount of water applied to the crops is controlled better and I no longer worry about the crops being drowned out. Using a center pivot is easy to use, and not as labor-intensive as the flood irrigation process.”

–James Silva

Real Results. Real Growers.

“Seeing the data from the physical sensor in the ground is the best benefit. This almost real-time data helps me plan my next irrigation, and see the effects of rainfall as well.”

–Bill Mize

Real Results. Real Growers.

“With the Reinke system being lighter, it doesn’t get stuck in the clay ground like the other heavier brands. I can save money and irrigate more sustainably.”

–Jac Johan van der Westhuizen

Discover the E3 Difference

Built for Ultimate Pivot Performance

Every Drop With a Purpose

Uniform coupler spacing makes irrigation consistent from end to end, avoiding overwatering by making the best use of your water and delivering it right where you need it.

Customized to Your Land

Systems built to fit your coverage needs, no matter your field shape.

Forged for the Field

ReinLock™ truss system that stands up against wear, tear, and tough weather.

Built for Any Terrain

Reliable performance even on the most unforgiving ground, so you don’t have to worry if your pivot finished the job.

Lock water in

V-ring seals at every connection keep water flowing where you need it.

Protect Your Yield

Single-leg tower design reduces crop loss.

Run Hard, Run Long

Maintenance-free bearings keep you rolling without the hassle, because every grower deserves a system that works as hard as they do.

Own Every Acre

End of system options for exact watering, even in the toughest-to-reach spots.

product breakdown

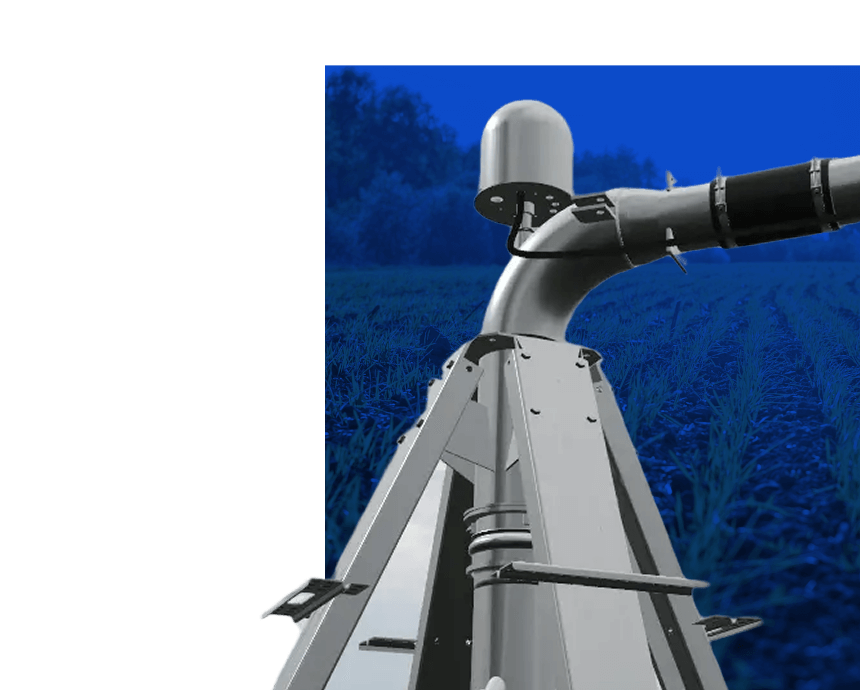

Specifications

PERFORMANCE FEATURES

Pivot Points

6”, 8” Maintenance-Free Bearing, 10”

Max System Length

2,900’

Pipe Diameters

6”, 6 5/8”

Pipe Materials

High-Strength Steel, CN+

Pipe Coatings

ReinCoat®, RedCoat™

Span Lengths¹

80', 100', 120', 140', 160', 175’, 180', 200', 220'

Span Connection

Hook & Receiver

Span Outlet Spacing

30", 60"

Span Percent Slope²

Up to 23%

Boom Lengths

10’ to 110’ in 10’ increments

Wheel Gears

Moderate duty, 740 Series,
Reinke 10/16 WheelGear

Tires

11” x 22.5”, 11.2” x 24”, 320/85R24, 14.9” x 24”, 16.9” x 24”, 11.2” x 38”, 320/85R38, 13.6” x 38”, 380/80R38

Drive Train

Three-Wheel Flex, Three-Wheel Ridged, Agri-TRACS™

Tower Heights

Low-Profile, Standard, Sugargator^®, Supergator^®

Truss System

ReinLock™ Trussing System

Truss Rods

5/8”, 3/4”, 13/16”

Towing³

Four-Wheel Pivot Mover, Skid Tow, Two-Wheel Quick Tow, Reverse Tow, Engine Drive⁴

ESAC™ Swing Arm Corner Series

Yes

Wrap Span

Yes

Drop Span

Yes

LONGEVITY AND RELIABILITY

Optimized Stress Transfer

The ReinLock™ Trussing System ensures greater structural integrity.

Reliable Drivetrain

Built for efficient and long-lasting operation in demanding conditions.

Industry-Leading Warranty

Ensuring long-term system performance and durability.

PERFORMANCE FEATURES

Available Tower Heights

Supergator®: 20 ft (6.1m)
Sugargator®: 14 ft (4.3m)
Standard: 9 ft (2.7m)
Low Profile: 5 ft (1.5m)

¹ Span lengths vary based on pipe diameter
² Slope limitations vary based on span length and span performance kits
³ Maximum machine length cannot exceed 1,320’ with a towing package
⁴ Available in a single span configuration only

view all specs

SUMMARY OF NEW SYSTEM LIMITED WARRANTY

WARRANTY

Reinke Irrigation Systems have a standard two (2) year limited warranty and extended warranties on certain primary components as listed below:

read full warranty

Water Pipe

Reinke 10/16

Or 16,000 hours of operation, whichever shall occur first.

25 Years

Span Joint Water Hose (Boots)

10 Years

Structural failure due to corrosion

Galvanized Steel
CN+
Aluminum
Stainless Steel
Poly-Lined

20 Years

Drive Train

Reinke 10/16

Or 16,000 hours of operation, whichever shall occur first.

10 Years

Standard Duty

Or 10,000 hours of operation, whichever shall occur first.

10 Years

Moderate Duty

Or 6,000 hours of operation, whichever shall occur first.

5 Years

Structural Components

Manufactured directly by Reinke Manufacturing Co., Inc.

5 Years

Precision Technology

Reinke 10/16

5 Years

RPM Advanced Plus™ Panel

5 Years

RPM Touch Screen Panel

5 Years

RPM Connect™ Panel

5 Years

Navigator™ EOS GPS

2 Years

RC3™

3 Years
