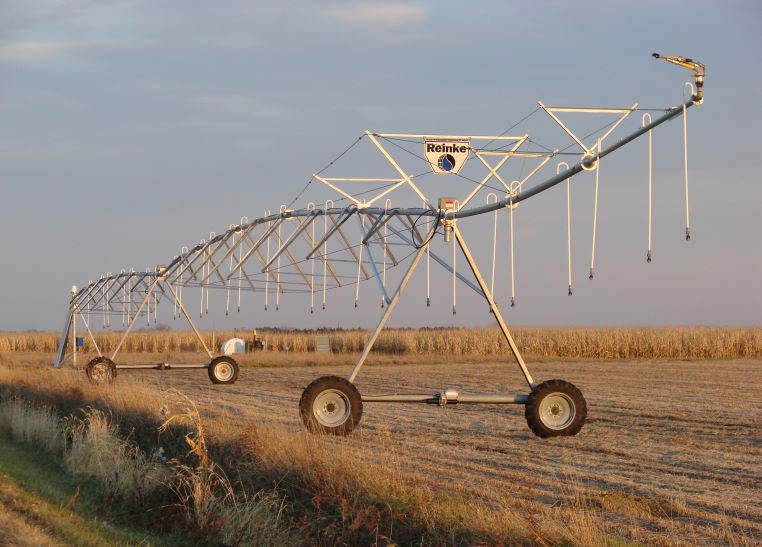

Minigator®
Center Pivots
Compact, cost-effective center pivot for smaller fields: A lightweight, highly maneuverable irrigation system designed for small-acreage farms and low-gallonage wells.
Learn More
Resources
Guides and insights designed to help you maximize efficiency, improve productivity, and make the most of your irrigation systems.
view all resources
product breakdown
Specifications
PERFORMANCE FEATURES

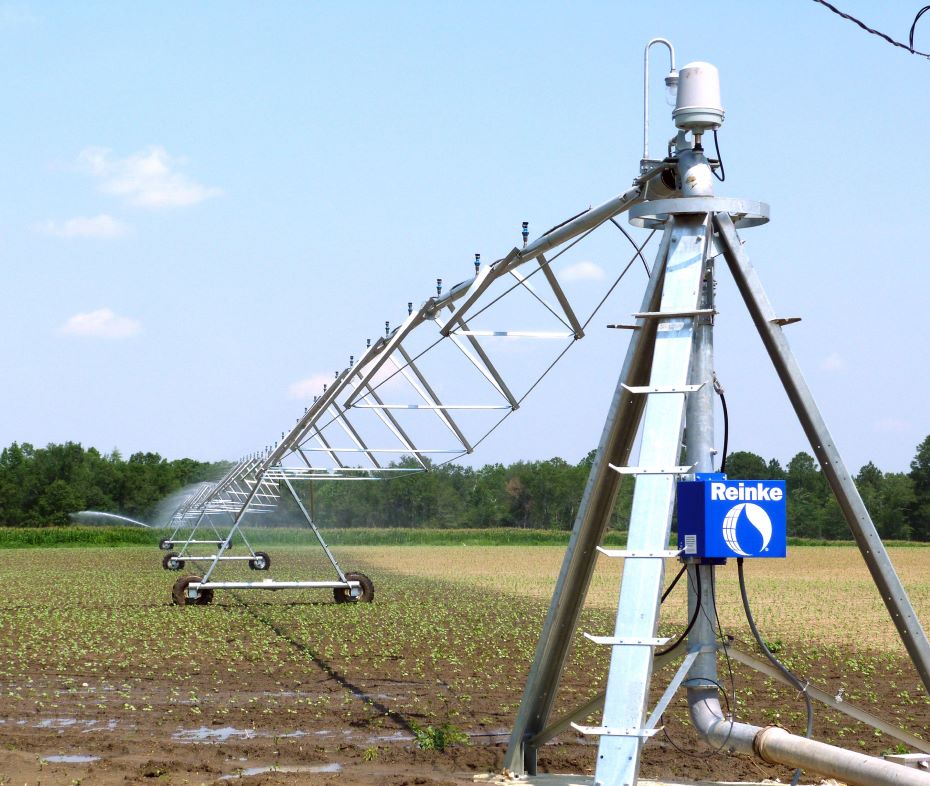

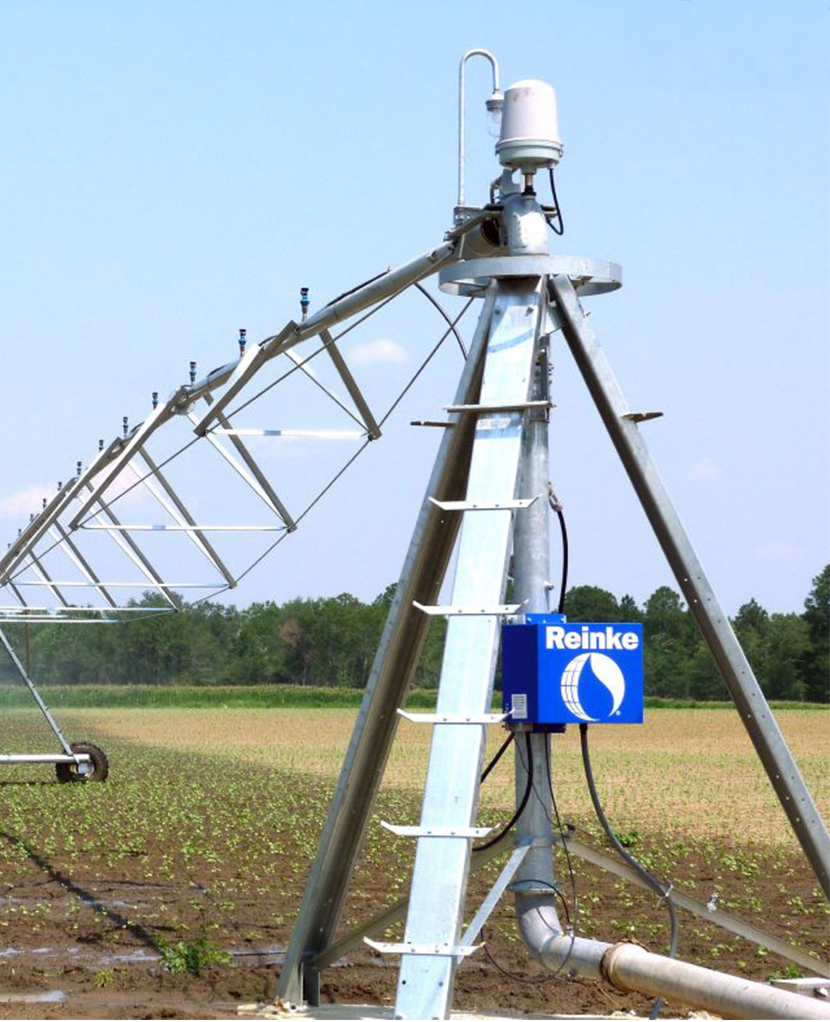

Pivot Points
6”
Max System Length
1,300’
Pipe Diameters
4 ½”
Pipe Materials
High-Strength Steel
Pipe Coatings
ReinCoat®
Span Lengths1
118’, 137’, 156’, 175’, 194’
Span Connection
Hook & Receiver
Span Outlet Spacing
57”, 114”
Span Percent Slope2
Up to 14%
Boom Lengths
13’, 23’, 32', 42’, 51’, 61’
Wheel Gears
Moderate duty
Tires
11” x 22.5”, 11.2” x 24”, 320/85R24, 14.9” x 24”, 16.9” x 24”
Drive Train
-
Tower Heights
Standard
Truss System
Heritage™ Trussing System
Truss Rods
9/16”, 5/8”
Towing3
Engine Drive4
ESAC™ Swing Arm Corner Series
-
Wrap Span
-
Drop Span
-
LONGEVITY AND RELIABILITY
Optimized Stress Transfer
The ReinLock™ Trussing System ensures greater structural integrity.
Reliable Drivetrain
Built for efficient and long-lasting operation in demanding conditions.
Industry-Leading Warranty
Ensuring long-term system performance and durability.
PERFORMANCE FEATURES
Available Tower Heights
Supergator®: 20 ft (6.1m)
Sugargator®: 14 ft (4.3m)
Standard: 9 ft (2.7m)
Low Profile: 5 ft (1.5m)
Sugargator®: 14 ft (4.3m)
Standard: 9 ft (2.7m)
Low Profile: 5 ft (1.5m)
1 Span lengths vary based on pipe diameter
2 Slope limitations vary based on span length and span performance kits
3 Maximum machine length cannot exceed 1,320’ with a towing package
4 Available in a single span configuration only
2 Slope limitations vary based on span length and span performance kits
3 Maximum machine length cannot exceed 1,320’ with a towing package
4 Available in a single span configuration only
.png)
SUMMARY OF NEW SYSTEM LIMITED WARRANTY
WARRANTY
Reinke Irrigation Systems have a standard two (2) year limited warranty and extended warranties on certain primary components as listed below:
Water Pipe
Reinke 10/16
Or 16,000 hours of operation, whichever shall occur first.
25 Years
Span Joint Water Hose (Boots)
10 Years
Structural failure due to corrosion
- Galvanized Steel
- CN+
- Aluminum
- Stainless Steel
- Poly-Lined
20 Years
Drive Train
Reinke 10/16
Or 16,000 hours of operation, whichever shall occur first.
10 Years
Standard Duty
Or 10,000 hours of operation, whichever shall occur first.
10 Years
Moderate Duty
Or 6,000 hours of operation, whichever shall occur first.
5 Years
Structural Components
Manufactured directly by Reinke Manufacturing Co., Inc.
5 Years
Precision Technology
Reinke 10/16
5 Years
RPM Advanced Plus™ Panel
5 Years
RPM Touch Screen Panel
5 Years
RPM Connect™ Panel
5 Years
Navigator™ EOS GPS
2 Years
RC3™
3 Years
